Turn-key PCB assembly services in prototype quantities or low-volume to mid-volume production runs

PCB manufacturing has never been so easy and cheap

Every electronics device is built around PCB. It is an essential part which provides rigidity, thermal dissipation, and even brings additional functionality. PCB enables assembling and robustly soldering components. There is no doubt that how good PCB depends on the designer and manufacturing quality. You can make perfect circuit design, but if PCB is crappy, no manufacturer can help even with highest precision. All steps from idea to the finished product must be treated with high standards no matter if this depends on you or second party.

NextPCB

PCB manufacturing is a significant step. Depending on board quality, it depends if it will be easy to solder if dimensions, holes markings will be within specs. Previous actions influence the automation of further processes of assembly and testing.

Selecting a PCB house

Building a PCB never been so easy. Many fab houses provide excellent services from start finish. This is a highly competitive market; this is why everyone wins – especially customers. PCB manufacturers are investing considerable resources to highly automate, increase quality and reduce costs so they could compete. Us users are benefiting from low prices and fast turnkeys. Most of the cheap PCB manufacturers as a rule of thumb are located in China.

In this case, let us look at NextPCB China PCB manufacturer. It is one of the most experienced PCB manufacturers in China which specializes in the PCB prototyping and assembly industry for over 15 years. They are running two large factories exceeding 150000 sq. They are dedicated to prototyping and assembly small and large scale. NextPCB is known for fast lead times as low as 24hours and low prices starting from $4.5. They even offer a free trial for the first order to make sure the manufacturing quality meets the needs.

nextpcb sales
Best sales from NextPCB

NextPCB prototyping capabilities

The full list of all PCB prototyping capabilities can be found here. The important ones are:

  • 1 to 16-layer PCBs
  • From 0.6 to 2.5mm board thickness
  • Copper weights: 35um/70um/105um
  • Materials: Fr-4, Aluminum, Rogers, Arlon, Polyamide
  • Surface finish: Tin / Lead Solder (HASL), ENIG
  • Max board size: 510*590mm
  • Green, red, white, yellow, blue, black and matte black solder mask colour
  • Minimal 3.5mil trace width and pacing
  • Min 0.2mm hole
  • Panelization options: V-scoring, Tab-routing, Tab-routing with Perforation (Stamp Holes)

There are even more dimensions that you need to study before designing your board and sending for manufacturing.

How to place an order on NextPCB

Ordering is straightforward with NextPCB as they are giving very intuitive online quote form where you can select all necessary parameters of your design and instantly see the approximate price of manufacturing and deliver.

nextpcb prototype quote

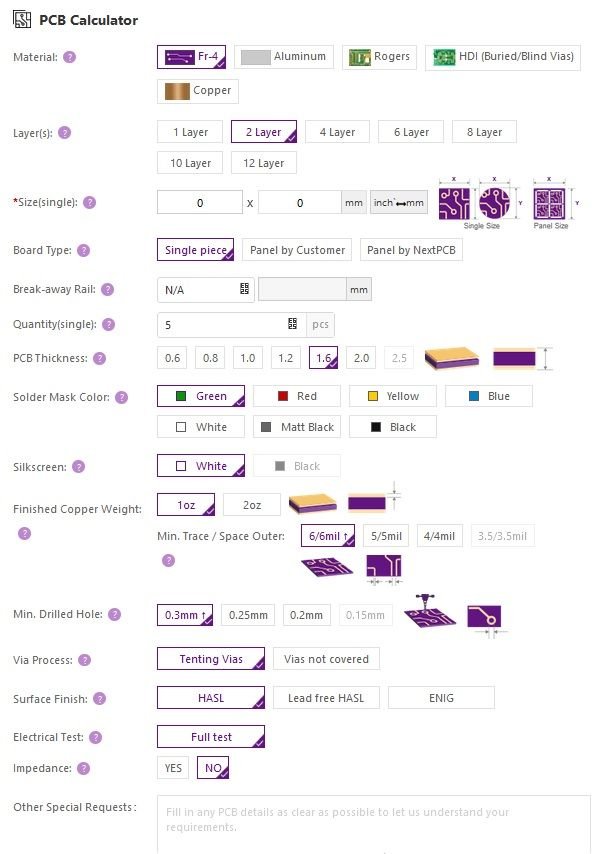

NextPCB prototype quote form

In the quote form, you can select base materials from FR-4, aluminium, Rogers and Copper. Layers, dimensions, panelization variants. Quantity, board thickness, sizes, colours of solder mask and silkscreen. Also, there are options to select necessary electrical testing and impedance checking. If you leave most os parameters by default, you can be sure that this is the cheapest option, because it includes the majority of cases and they can optimize and automate the process at the best price. By changing parameters, you can instantly see the price in the Calculate tab.

For instance, 5pcs of dual-layer PCB sized at 100mm 100mm costs $4.5 without shipping. And they promise to dispatch them within 24 hours.

After doing the initial calculus, you need to:

  • Register and log in to their system
  • Upload PCB Gerber files (They are flexible here about file formats – contact if unsure)
  • Review uploaded files
  • Place an order with one of the payment options (PayPal, TT, Western Union, etc.)
  • Wait for the product to arrive
sembled pcb

If you are building a small batch of devices, be sure to check their PCB assembly service which starts from $30. Additionally, they may take care of sourcing components and do testing for you. All you get is finished product that you may begin using instantly.

Why NextPCB?

NextPCB is an excellent choice because they are highly experienced in PCB manufacturing and assembly. The professional team are comfortable in working with advanced and sophisticated devices. The equipment allows fabricating high quality and intricate professional-grade designs with different materials and target uses. Engineers always review design files before manufacturing for error-free yields. Fast 24-hour prototyping turnkey, 24-hour support with 10-minute response time ensures that you get the best possible product. Read more about NextPCB here.

If you feel hesitant about services or unsure where to start with ordering or assembly process, always feel free to contact them via email (support@nextpcb.com or service@nextpcb.com). Or simply go to contact form within their website.
